SPINDLE TECHNOLOGY

High Frequency Spindles for production, Aerospace ,Mold Making ,Automotive

Here you will find Diebold high-frequency spindles for HSC milling, HPC milling and for robot milling. Motor spindles for 5-axis milling up to swivel spindles with an extremely short design and high performance up to 90 kW in the smallest installation space and speeds of up to 50,000 rpm.

HIGH-FREQUENCY SPINDLE

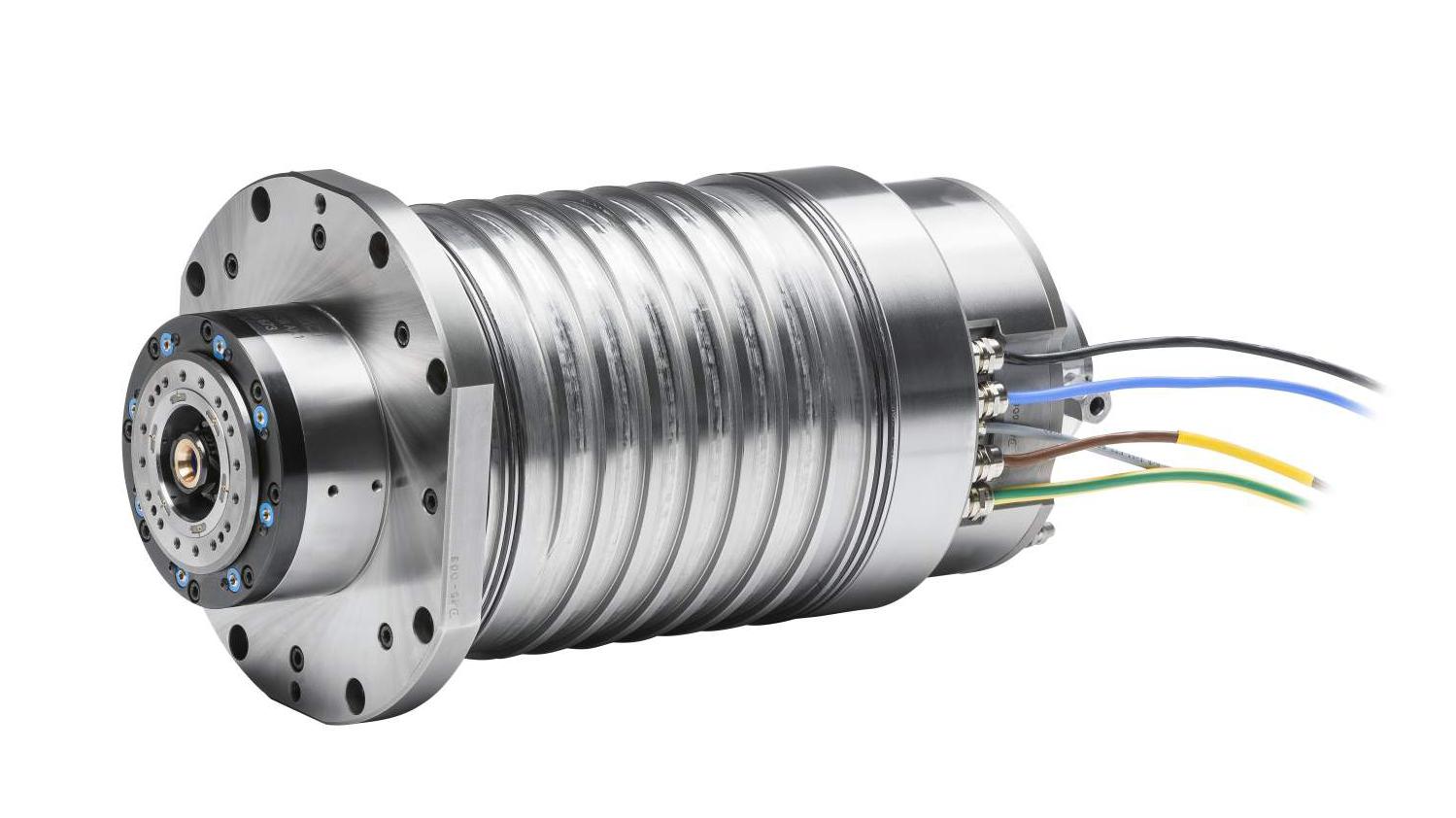

Particularly service-friendly HSK insert spindles for high-performance milling with a compact design and grease storage instead of oil-air lubrication.

HIGH-FREQUENCY SPINDLES

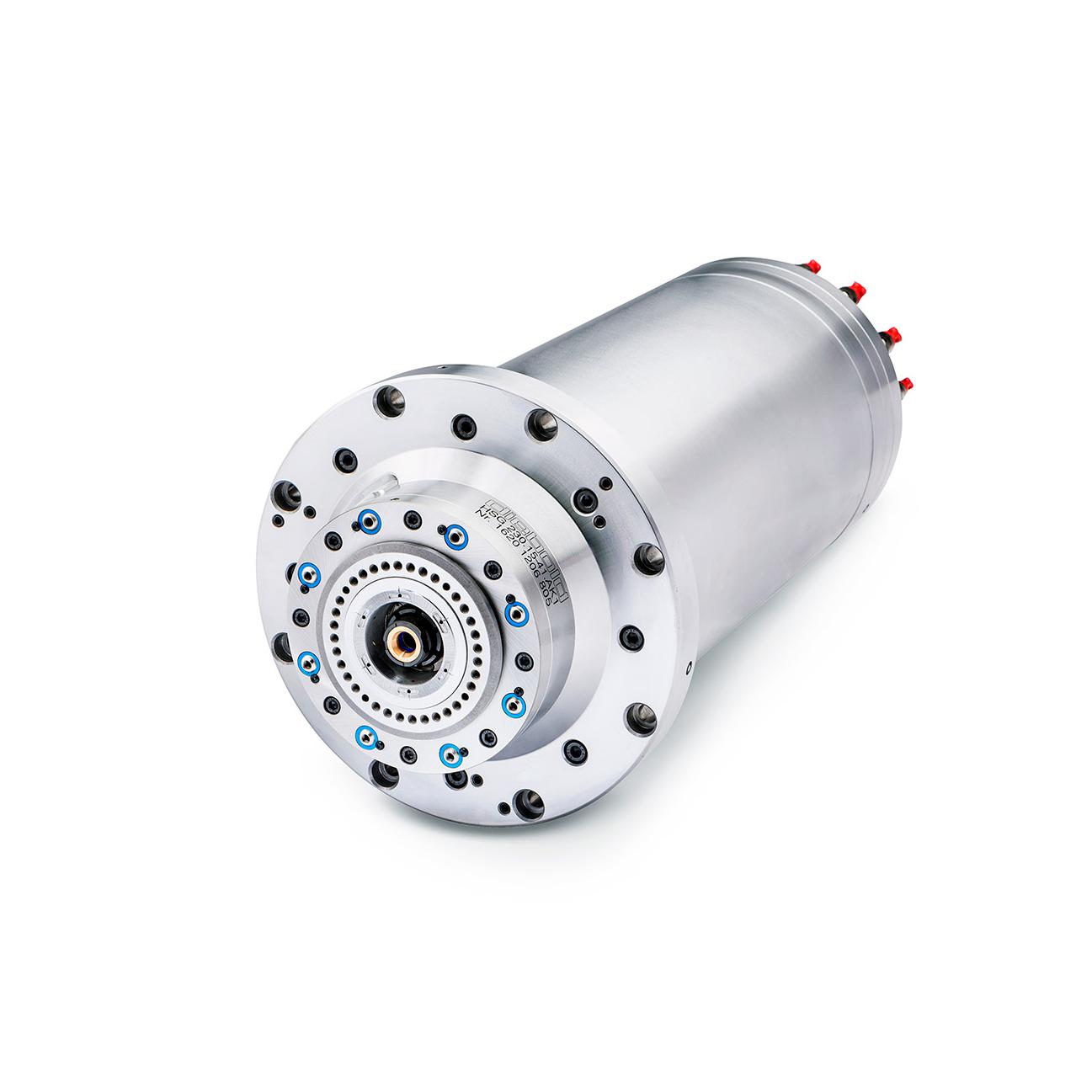

Spindles with rotary feedthrough for coolant, MQL, ATS, air or with vacuum suction. In addition, spindles with HSK-T shaft and clamping of the spindle shaft.

MODULAR SPINDLES

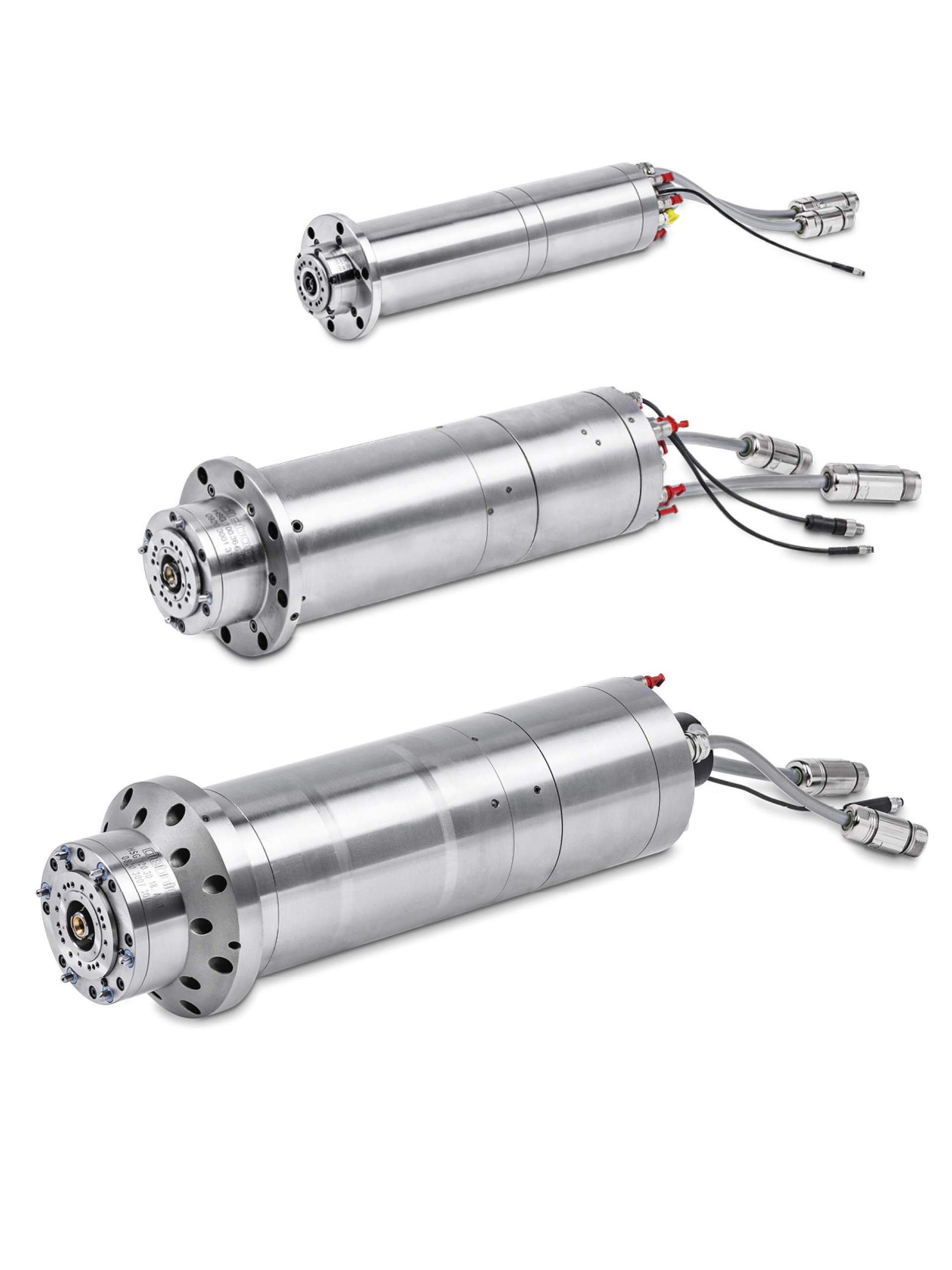

Modular high-frequency spindles with 80 mm, 100 mm, 120 mm diameter with different taper variants (HSK-A, HSK-C, HSK-E, HSK-T) for high-precision machines.

SPINDLE PACKAGES

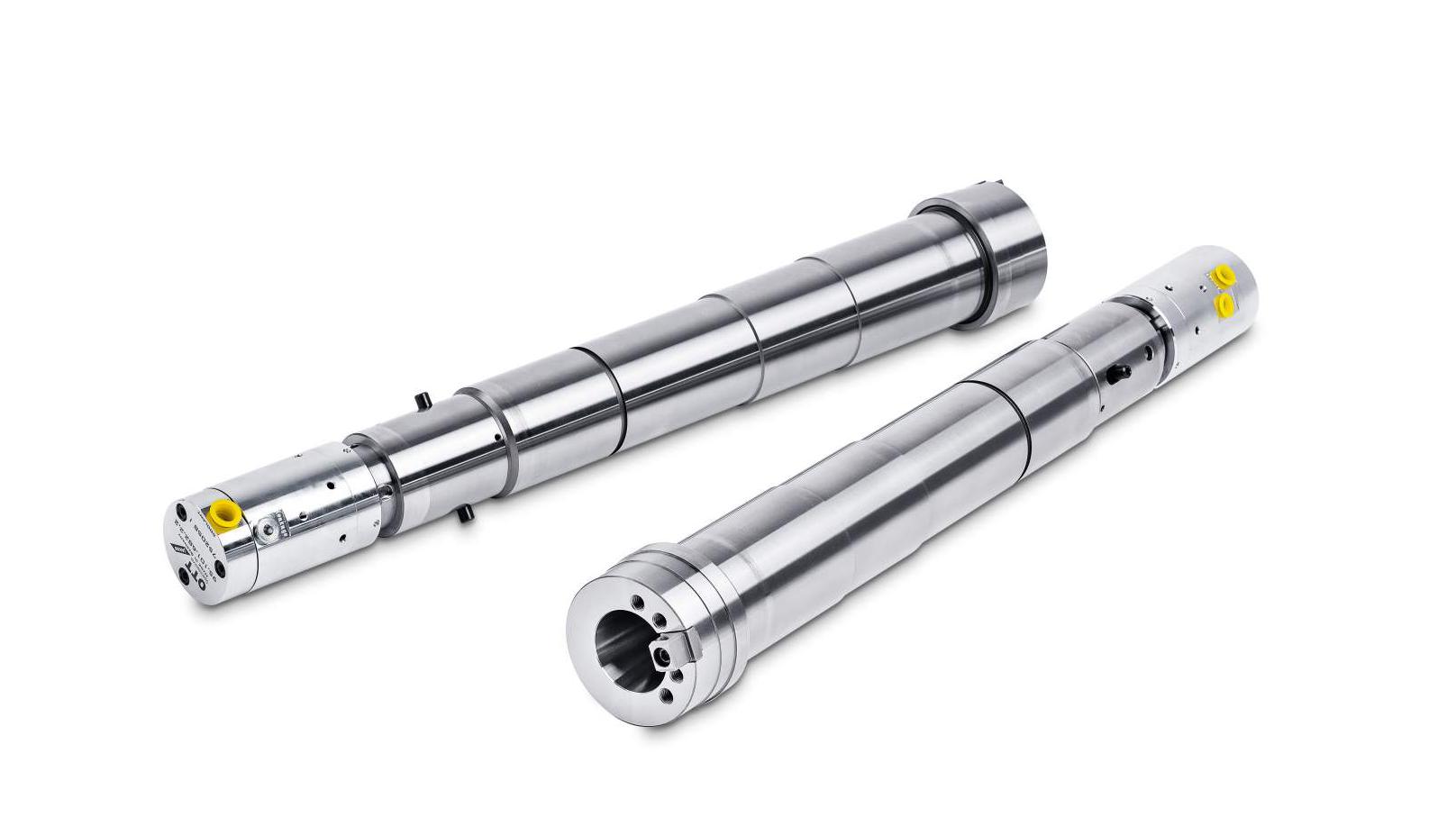

Customer-specific spindle packages from several assemblies, eg spindle shaft with built-in tool clamp or spindle shaft, clamping system, bearing and rotor.

SPINDLE REPAIRS

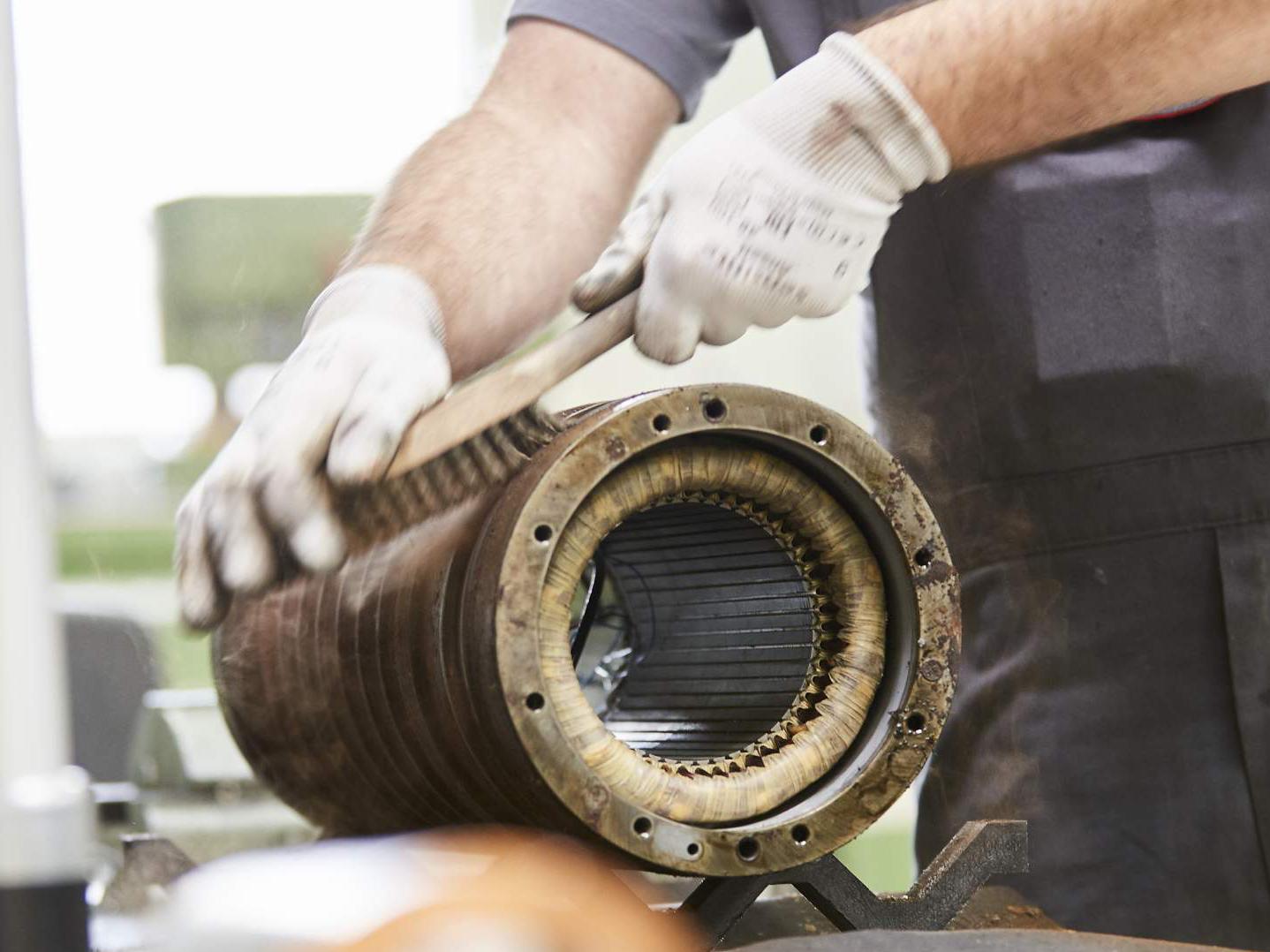

Professional and fast repair of Diebold high-frequency spindles of all types and third-party makes.
