MEASURING TECHNOLOGY

Taper Gauges, Mandrels & Clamping force testers for maximum precision

.
Diebold offers a wide product range of taper measuring instruments for measuring HSK, SK, BT and D-BT tapers as well as taper measuring gauges for HSK spindle tapers.The product range of measuring technology also includes pull force gauges for spindles with HSK, SK, BT and PSC tapers, test arbors for run-out test of spindles and several special measuring instruments.
.

CLAMPING FORCE TESTERS

The clamping force can be checked in seconds and this is completely independent of the temperature

.
.

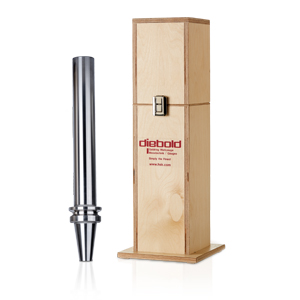

CONCENTRICITY TEST GAUGES

For the high-precision alignment and measurement of your machine

.

3D EDGE FINDERS

Find and set your reference point easily and safely in all 3 axes with just one device

.

CONTROL SHAFTS

Exact run-out control shaft for absolutely error-free run-out measurement of your recordings.

.

D-BT TAPER MEASURING INSTRUMENTS

Measure all functional dimensions of your tool holders in relation to the flat surface with high precision: taper dimensions, clamping shoulder, gripper groove, axial run-out and concentricity

.

DRIVE KEY INSPECTION GAUGE

For measuring the groove width and the center offset in seconds

.

HSK TAPER MEASURING INSTRUMENTS

Measure all functional dimensions of your tool holders with too high a precision. Taper dimensions, clamping shoulder, impression depth, gripper groove, axial runout and runout

.

MEASURING GAUGES

Products for measuring your spindle: taper gauge, tie rod position, spindle alignment and unbalance measurement

.

MEASURING INSTRUMENT

For HSK tools in soft machining or in final inspection.

.

THE DIEBOLD QUALITY CHECK

As a service we offer you to check your existing HSK tool holders.

.

TOOL PRESETTING DEVICES

Tool presetting and measuring device

.
